# 下载 YOLOv6 并安装下载地址：https://github.com/meituan/YOLOv6.git
1 git clone https://github.com/meituan/YOLOv6.git
创建指定版本的虚拟环境
1 conda create -n yolov6 python=3.8
安装依赖
1 2 cd YOLOv6pip install -r requirements.txt
# 数据集准备赛题来源自 Google 街景图像中的门牌号数据集（The Street View House Numbers Dataset, SVHN），该数据来自真实场景的门牌号。训练集数据包括 3W 张照片，验证集数据包括 1W 张照片，每张照片包括颜色图像和对应的编码类别和具体位置；为了保证比赛的公平性，测试集 A 包括 4W 张照片，测试集 B 包括 4W 张照片。
从天池官方发的 csv 文件中找到对应的数据集下载链接：

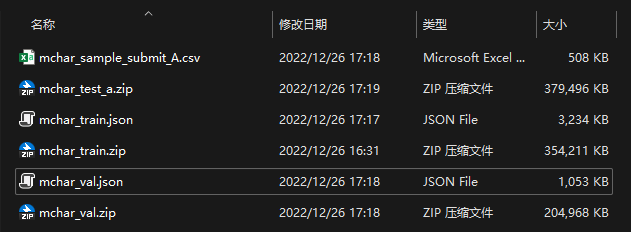

下载下列数据集到本地

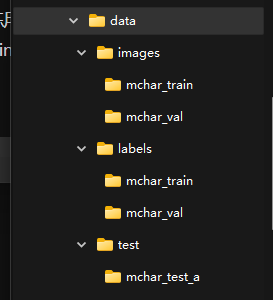

解压并整理文件目录，按照下图存放图像和标签，images 中分别存放训练集和验证集的图片
由于当前数据集并不是 yolo 可用的数据集格式，需要使用脚本进行转换，脚本代码如下
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 import json import cv2 import osjson_dir = 'mchar_val.json' out_dir = 'labels/mchar_val/' img_dir='images/mchar_val/' def main (): with open (json_dir, 'r' ) as load_f: content = json.load(load_f) count = 1 for t,value in content.items(): tmp = t.split('.' ) filename = out_dir + tmp[0 ] + '.txt' left=value['left' ] top=value['top' ] height=value['height' ] width=value['width' ] label=value['label' ] image_cv = cv2.imread(img_dir+tmp[0 ]+'.png' ) image_height=image_cv.shape[0 ] image_width=image_cv.shape[1 ] print ("{}/{}" .format (count,len (content.items()))) count += 1 for index in range (len (left)): bbox0=left[index] bbox1 = top[index] bbox2=bbox0+width[index] bbox3=bbox1+height[index] theLabel=label[index] x = (bbox0 + bbox2) / 2 / image_width y = (bbox1 + bbox3) / 2 / image_height w = (bbox2 - bbox0) / image_width h = (bbox3 - bbox1) / image_height fp = open (filename, mode="a+" , encoding="utf-8" ) file_str = str (theLabel) + ' ' + str (round (x, 6 )) + ' ' + str (round (y, 6 )) + ' ' + str (round (w, 6 )) + ' ' + str (round (h, 6 )) fp.write(file_str+os.linesep) fp.close() if __name__ == '__main__' : main()

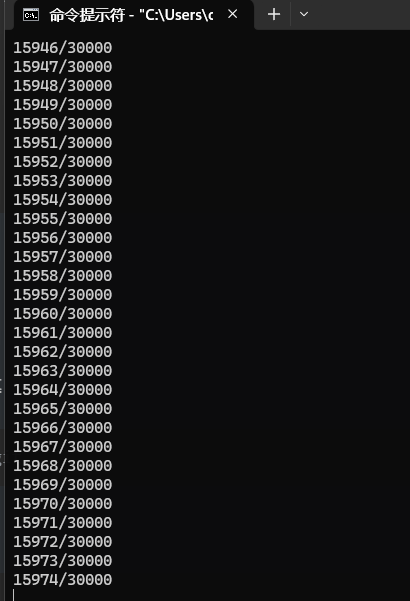

运行脚本，进行格式转换
将路径修改为验证集的标签和图片再执行一次
1 2 3 json_dir = 'mchar_val.json' out_dir = 'labels/mchar_val/' img_dir='images/mchar_val/'
得到如下标签文件

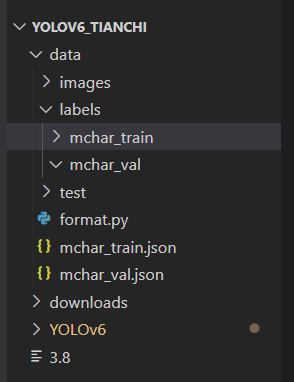

共有 30000 个训练集标签和 10000 个验证集标签，最终数据集目录
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 custom_dataset ├── images │ ├── train │ │ ├── train0.jpg │ │ └── train1.jpg │ ├── val │ │ ├── val0.jpg │ │ └── val1.jpg │ └── test │ ├── test0.jpg │ └── test1.jpg └── labels ├── train │ ├── train0.txt │ └── train1.txt └── val ├── val0.txt └── val1.txt
# YOLO 相关配置# 数据集标签修改 $DIR_YOLOv6/data 目录下的 dataset.yaml
1 2 3 4 5 6 7 8 9 10 train: ../data/images/mchar_train val: ../data/images/mchar_val is_coco: False nc: 10 names: ['0' ,'1' , '2' , '3' , '4' , '5' , '6' , '7' , '8' , '9' ]
配置训练和验证集的路径，修改种类的数量和标签名
# 模型架构配置如果需要修改模型的优化器和超参数等配置信息，可以创建一个新的 config 文件并将其放置到‘config’目录下，当然也可以直接使用官方提供的模型配置 ‘$YOLOV6_HOME/configs/*_finetune.py’
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 model = dict ( type ='YOLOv6s' , pretrained='./weights/yolov6s.pt' , depth_multiple = 0.33 , width_multiple = 0.50 , ... ) solver=dict ( optim='SGD' , lr_scheduler='Cosine' , ... ) data_aug = dict ( hsv_h=0.015 , hsv_s=0.7 , hsv_v=0.4 , ... )
cuda环境配置
先下载新版本的 N 卡驱动程序，安装对应版本的 cuda 和 cudnn（不在这里赘述）
卸载原先 cpu 版本的 pytorch
1 pip3 uninstall torch torchvision torchaudio

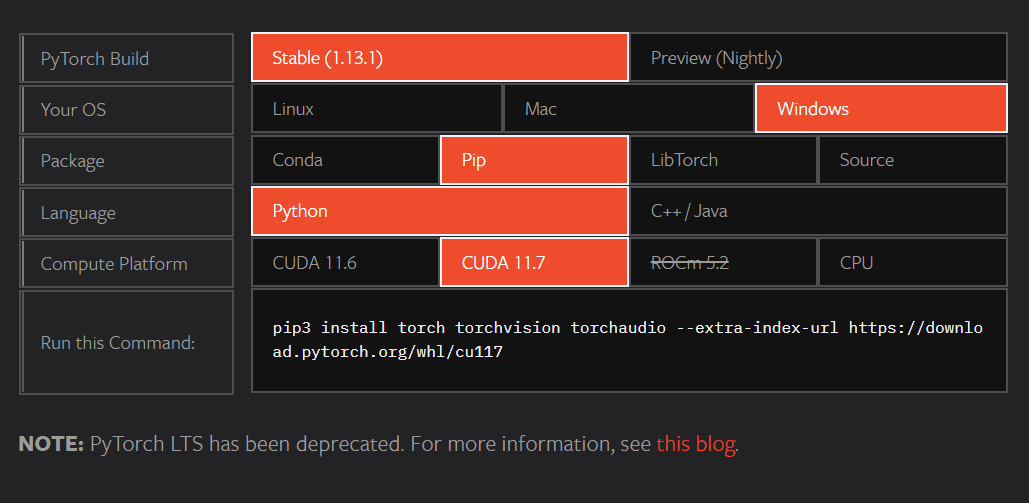

然后安装对应 cuda 版本的 pytroch
1 pip3 install torch torchvision torchaudio --extra-index-url https://download.pytorch.org/whl/cu117
由于国内可能无法访问，可能需要借助代理
1 2 set HTTP_PROXY=http://localhost:port set HTTPS_PROXY=http://localhost:port
之后就能成功下载安装该版本的 pytorch
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 (YOLOv6) C:\Users\cy\project\yolov6_tianchi\YOLOv6>pip3 install torch torchvision torchaudio --extra-index-url https://download.pytorch.org/whl/cu117 Looking in indexes: https://pypi.tuna.tsinghua.edu.cn/simple, https://download.pytorch.org/whl/cu117 Collecting torch Downloading https://download.pytorch.org/whl/cu117/torch-1.13.1%2Bcu117-cp38-cp38-win_amd64.whl (2255.7 MB) ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 2.3/2.3 GB 1.3 MB/s eta 0:00:00 Collecting torchvision Downloading https://download.pytorch.org/whl/cu117/torchvision-0.14.1%2Bcu117-cp38-cp38-win_amd64.whl (4.8 MB) ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4.8/4.8 MB 10.3 MB/s eta 0:00:00 Collecting torchaudio Downloading https://download.pytorch.org/whl/cu117/torchaudio-0.13.1%2Bcu117-cp38-cp38-win_amd64.whl (2.3 MB) ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 2.3/2.3 MB 16.2 MB/s eta 0:00:00 Requirement already satisfied: typing-extensions in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from torch) (4.4.0) Requirement already satisfied: requests in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from torchvision) (2.28.1) Requirement already satisfied: pillow!=8.3.*,>=5.3.0 in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from torchvision) (9.3.0) Requirement already satisfied: numpy in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from torchvision) (1.24.0) Requirement already satisfied: urllib3<1.27,>=1.21.1 in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from requests->torchvision) (1.26.13) Requirement already satisfied: certifi>=2017.4.17 in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from requests->torchvision) (2022.12.7) Requirement already satisfied: idna<4,>=2.5 in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from requests->torchvision) (3.4) Requirement already satisfied: charset-normalizer<3,>=2 in c:\users\cy\miniconda3\envs\yolov6\lib\site-packages (from requests->torchvision) (2.1.1) Installing collected packages: torch, torchvision, torchaudio Successfully installed torch-1.13.1+cu117 torchaudio-0.13.1+cu117 torchvision-0.14.1+cu117
进入 python 命令行进行验证
1 2 3 4 5 Python 3.8.15 (default, Nov 24 2022, 14:38:14) [MSC v.1916 64 bit (AMD64)] :: Anaconda, Inc. on win32 Type "help", "copyright", "credits" or "license" for more information. > >> import torch > >> torch.__version__ '1.13.1+cu117'
成功安装 cuda 版本的 pytorch
# 开始训练！进入 YOLOv6 目录下，下载预训练的模型文件
1 2 3 4 cd YOLOv6 mkdir weights cd weights wget https://github.com/meituan/YOLOv6/releases/download/0.2.1/yolov6s_base.pt
将其重命名为 ‘yolov6s.pt ’
单个 GPU 进行训练，直接使用官方提供的配置进行训练，修改 batch size 为 16，默认的 256 我的 6G 显存怕是撑不住
1 2 cd .. python tools/train.py --batch 16 --conf configs/yolov6s_finetune.py --data data/dataset.yaml --device 0
（可选，使用超算节点的DDP加速训练）
以后有机会再用超算节点吧（
1 python -m torch.distributed.launch --nproc_per_node 4 tools/train.py --batch 256 --conf configs/yolov6s_finetune.py --data data/data.yaml --device 0 ,1 ,2 ,3

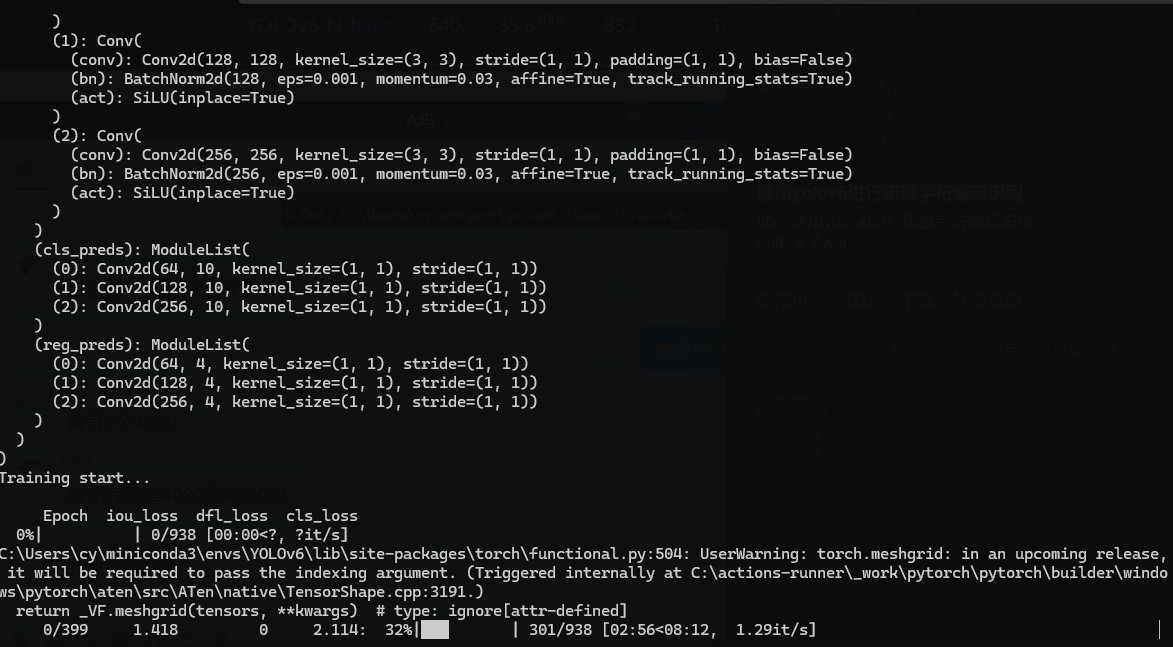

训练过程如图
# 模型评估和测试执行模型评估，‘output_dir/name’ 替换为上次运行生成的模型文件路径，一般是位于‘runs/trains/expX’，X 为最大值的那个目录，我将该目录下的‘best_ckpt.pt’移动到了 ‘YOLOv6/out/weights’目录下
1 python tools/eval .py --data data/dataset.yaml --weights out/weights/best_ckpt.pt --device 0
执行模型测试
1 python tools/infer.py --weights --weights out/weights/best_ckpt.pt --source img.jpg --device 0

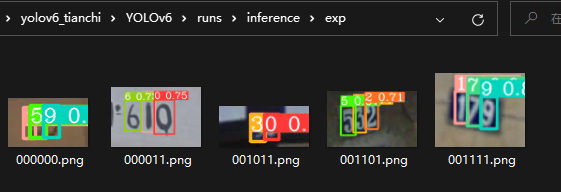

会在‘run/inference/exp’目录下生成推断结果的图片
可以看出结果还不错，而这仅仅只是训练了 20 个 epoch 的结果。
继续训练达到 80 个 epoch，执行模型评估，结果如下
1 2 3 4 5 6 7 8 9 10 11 12 13 14 Average Precision (AP) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.430 Average Precision (AP) @[ IoU=0.50 | area= all | maxDets=100 ] = 0.899 Average Precision (AP) @[ IoU=0.75 | area= all | maxDets=100 ] = 0.339 Average Precision (AP) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.430 Average Precision (AP) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.433 Average Precision (AP) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.371 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 1 ] = 0.480 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 10 ] = 0.592 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.598 Average Recall (AR) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.597 Average Recall (AR) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.603 Average Recall (AR) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.649 Results saved to runs\train\exp25 Epoch: 80 | [email protected] : 0.8993700836937124 | [email protected] :0.95: 0.43044386965998743
可以看到 mAP 在该数据集上达到了较好水平。
对全部测试图片进行识别并生成结果
1 python tools/infer.py --weights out/weights/best_ckpt.pt --source ../data/test/mchar_test_a --save-txt --save-dir out/results --device 0

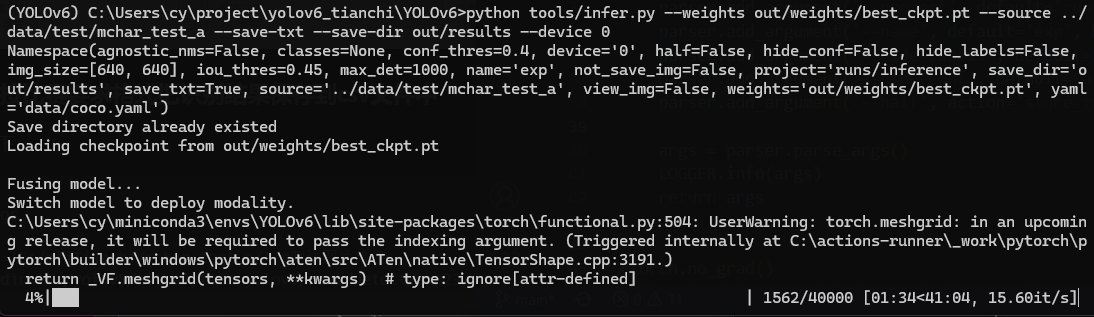

1 2 3 4 5 6 7 8 9 10 (YOLOv6) C:\Users\cy\project\yolov6_tianchi\YOLOv6>python tools/infer.py --weights out/weights/best_ckpt.pt --source ../data/test/mchar_test_a --save-txt --save-dir out/results --device 0 Namespace(agnostic_nms=False, classes=None, conf_thres=0.4, device='0', half=False, hide_conf=False, hide_labels=False, img_size=[640, 640], iou_thres=0.45, max_det=1000, name='exp', not_save_img=False, project='runs/inference', save_dir='out/results', save_txt=True, source='../data/test/mchar_test_a', view_img=False, weights='out/weights/best_ckpt.pt', yaml='data/coco.yaml') Save directory already existed Loading checkpoint from out/weights/best_ckpt.pt Fusing model... Switch model to deploy modality. C:\Users\cy\miniconda3\envs\YOLOv6\lib\site-packages\torch\functional.py:504: UserWarning: torch.meshgrid: in an upcoming release, it will be required to pass the indexing argument. (Triggered internally at C:\actions-runner\_work\pytorch\pytorch\builder\windows\pytorch\aten\src\ATen\native\TensorShape.cpp:3191.) return _VF.meshgrid(tensors, **kwargs) # type: ignore[attr-defined] 15% |███████████▋ | 6074/40000 [06:32<39:05, 14.46it/s]
# 数据整理和提交经过对全部数据识别，得到了测试数据集的识别标签文件，需要将其整理为天池官方需要的 csv 数据格式。
在‘YOLOv6’目录下执行下面的 python 脚本
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 import os img_dir='../data/test/mchar_test_a/' result_dir='out/results/mchar_test_a/' out_dir = 'out/results/mchar_test_result/' def takeSecond (elem ): return elem[1 ] dirs=os.listdir(img_dir) fp = open (out_dir+'result.csv' , mode="w+" , encoding="utf-8" ) lines = 0 fp.write('file_name' +',' + 'file_code' + '\n' ) for file in dirs: txtFileName=file.title().split("." )[0 ]+'.txt' listCode = [] if os.access(result_dir+txtFileName,os.F_OK): with open (result_dir+txtFileName, "r" ) as f: for line in f.readlines(): tmp = line.split(' ' ) listCode.append((tmp[0 ],float (tmp[1 ]))) listCode.sort(key=takeSecond) theNumber='' for code in listCode: theNumber+=code[0 ] fileName=file.title().lower() fp.write(fileName+',' + theNumber+ '\n' ) lines += 1 fp.close() print (f'total lines:{lines} ' )

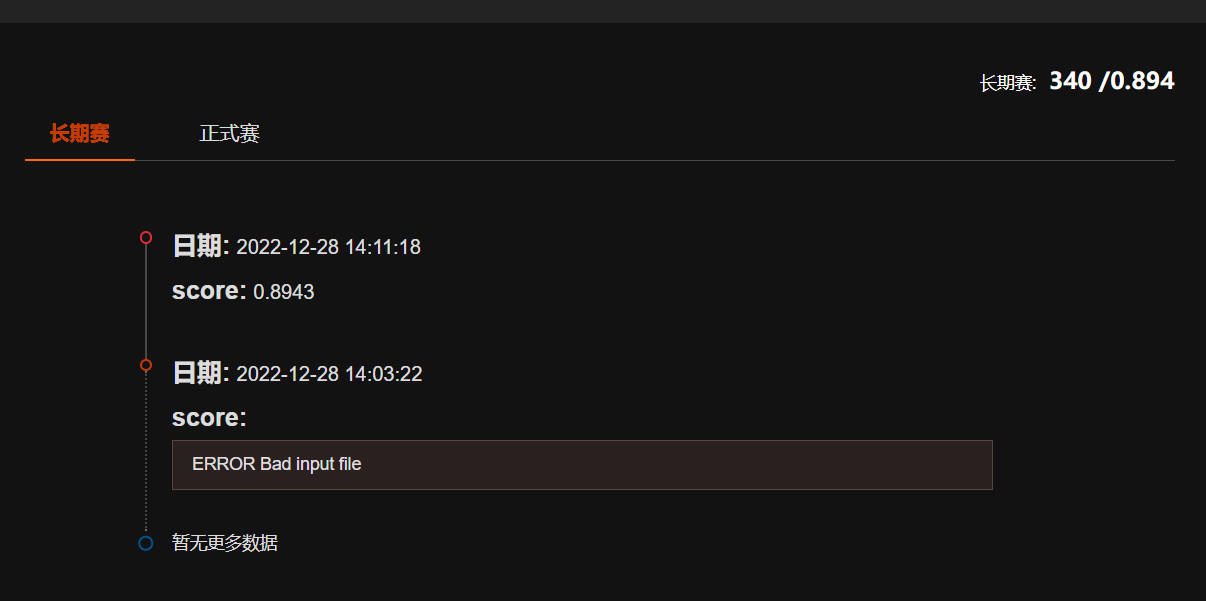

结果竟然出人意料的不错
